CDI options:
 Exhaust valve / Tacho exit
• UNIVERSAL: The CDI will have an additional red wire that can be connected to work on most REV-counters (tacho).

• TWO-STROKE POWER VALVE SYSTEM: This system is used on some bikes as an improvement to a conventional two-stroke engine to give high power output over a wider RPM range. We have developed our CDI's to work with some of these systems: Yamaha's YPVS and Suzuki's AETC.
 Tacho exit
 2 Curves
The CDI will have two additional wires that allow you to switch between two different ignition curves. Selecting the curve can be done by simply connecting or diconnecting these two wires, or by selecting the curve with a switch (image on the right).

Order code for the switch: 068V064
 2 Curves
 Programmable
Only for digital units. Draw your own ignition curve with our TuneBox software, and program it into the CDI with the interface. The TuneBox software is free, and the latest version can be downloaded from the link below.

Order code for the programmation kit (USB Interface and the latest version of the TuneBox software on a CD): 068V043

For more info, or to download the TuneBox software, click here.
 Programmable **
 Powerjet
PowerJet is only available on digital CDI-units and can be set up with the TuneBox software. It is an exit which is able to draw 2 amperes to ground in 2 user defined RPM regions. This can be used to drive a valve or light at a desired RPM range.

This is an optional exit for most vehicles. If, however, the vehicle already uses this system, our CDIs will be equipped with this system as standard. This means no additional wires, as the system is implemented into the wiring loom or connector, as with the original CDI.

If the vehicle has no standard PowerJet installed, this exit comes as an extra wire. Users should build a valve system on their engines themselves.
 Powerjet **
 Shift System
Shift Delay System (SD) is only available on digital CDI-units and allows to shift gears without clutch. The shift delay system will retard or interrupt the ignition momentarily to release the transmission load. In this moment the rider can shift up without throttling down.

The shift delay system comes as an additional 2 wire plug (with counterpart) and can be fully adjusted to be used with any input switch, which has to be installed by the user. Use TuneBox to set the SD for normal open or normal closed switches. Set the SD to retard the ignition 60° or to interrupt the ignition for a programmable period of time.
 Shift System **
 Throttle position
Throttle Position Sensor (TPS) is only available on digital CDI-units. It is an optional input which will determine which advance curve will be selected. With TuneBox you will be able to draw 6 different advance curves. The TPS will then decide which one is activated.

Use the TPS in combination with the curve switch:
• Position 1; The CDI will ignore the TPS. The CDI will then select curve 1, which can be used for sound tests.
• Position 2; The TPS signal will determine which curve is selected. Low throttle selects curve 2, full throttle selects curve 6.

If the vehicle has no standard TPS installed, this input comes as an additional 3 wire plug. Users should build a TPS on their system themselves.
 Throttle position **
** Digital CDI

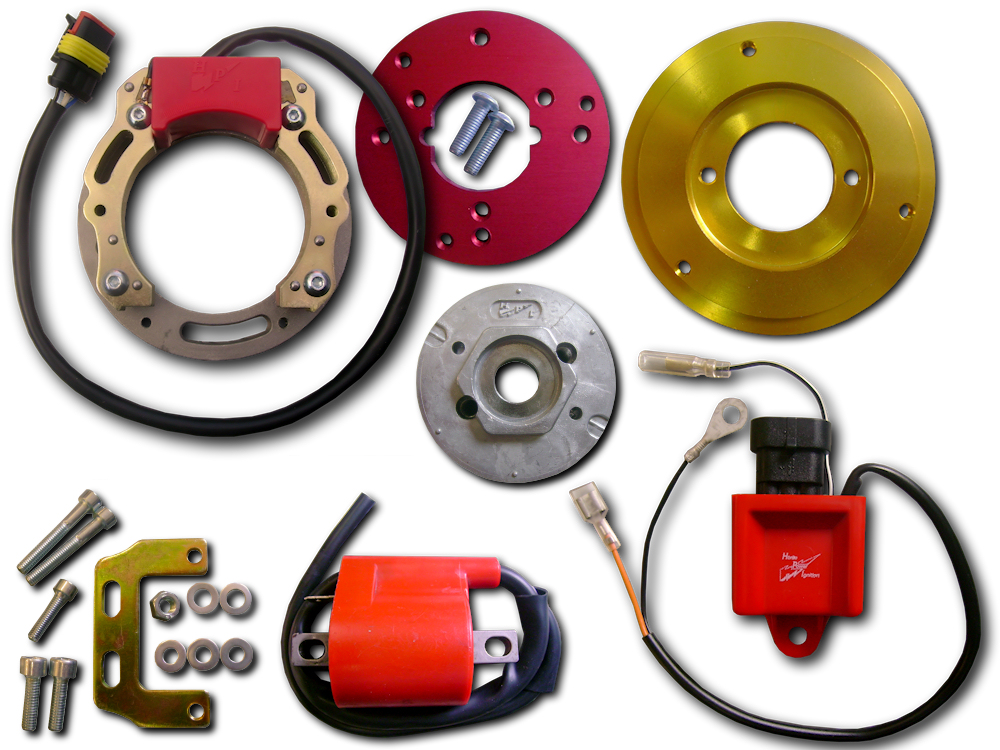

068K223
IGNITION ONLY

list of all kits

€180

All prices are ex. 21% VAT

Installation manuals
English
Nederlands



More information
CDI curve 068K223
The digital 068 CDI
TuneBox software
ALL PARTS ARE SEPERATELY AVAILABLE

068R031

068S194R

068B021

068V186

068V184

068C068

068V075
ApriliaHabana 50 (2004-2007) 50cc/2stroke The Habana 50
is also available as a 210 Light ignition kit.
210K223

Mojito 50 (2004-2008) 50cc/2stroke The Mojito 50
is also available as a 210 Light ignition kit.
210K223

Scarabeo 50 2T (2004-2006) 50cc/2stroke The Scarabeo 50 2T
is also available as a 210 Light ignition kit.
210K223

Scarabeo 50 2T RST (2007-2011) 50cc/2stroke The Scarabeo 50 2T RST
is also available as a 210 Light ignition kit.
210K223

Sport City 50 One 2T (2008-2011) 50cc/2stroke The Sport City 50 One 2T
is also available as a 210 Light ignition kit.
210K223

DerbiAtlantis 50 O2 (2002-2006) 50cc/2stroke The Atlantis 50 O2
is also available as a 210 Light ignition kit.
210K223

Atlantis 50 City (2007-2011) 50cc/2stroke The Atlantis 50 City
is also available as a 210 Light ignition kit.
210K223

Boulevard 50 2T (2009-2011) 50cc/2stroke The Boulevard 50 2T
is also available as a 210 Light ignition kit.
210K223

GileraIce 50 (2001-2005) 50cc/2stroke The Ice 50
is also available as a 210 Light ignition kit.
210K223

Runner 50 (1997-2000) 50cc/2stroke The Runner 50
is also available as a 210 Light ignition kit.
210K223

Stalker 50 (1997-2011) 50cc/2stroke The Stalker 50
is also available as a 210 Light ignition kit.
210K223

Stalker 50 Naked (2004-2011) 50cc/2stroke The Stalker 50 Naked
is also available as a 210 Light ignition kit.
210K223

Storm 50 (2007-2011) 50cc/2stroke The Storm 50
is also available as a 210 Light ignition kit.
210K223

Typhoon 50 (1998-2011) 50cc/2stroke The Typhoon 50
is also available as a 210 Light ignition kit.
210K223

ItaljetJet Set 50 (2001-2003) 50cc/2stroke The Jet Set 50
is also available as a 210 Light ignition kit.
210K223

Torpedo 50 2T (2001-2003) 50cc/2stroke The Torpedo 50 2T
is also available as a 210 Light ignition kit.
210K223

PiaggioDiesis 50 (2000-2004) 50cc/2stroke The Diesis 50
is also available as a 210 Light ignition kit.
210K223

Fly 50 2T (2005-2012) 50cc/2stroke The Fly 50 2T
is also available as a 210 Light ignition kit.
210K223

Free 50 (1993-2002) 50cc/2stroke The Free 50
is also available as a 210 Light ignition kit.
210K223

Liberty 50 2T (1997-2012) 50cc/2stroke The Liberty 50 2T
is also available as a 210 Light ignition kit.
210K223

NRG 50 AC (1994-2011) 50cc/2stroke The NRG 50 AC
is also available as a 210 Light ignition kit.
210K223

NTT 50 AC (1995-1996) 50cc/2stroke The NTT 50 AC
is also available as a 210 Light ignition kit.
210K223

Quartz 50 (1992-1996) 50cc/2stroke The Quartz 50
is also available as a 210 Light ignition kit.
210K223

Sfera 50 (1991-1994) 50cc/2stroke The Sfera 50
is also available as a 210 Light ignition kit.
210K223

Sfera 50 RST (1995-1997) 50cc/2stroke The Sfera 50 RST
is also available as a 210 Light ignition kit.
210K223

Typhoon 50 (2006-2012) 50cc/2stroke The Typhoon 50
is also available as a 210 Light ignition kit.
210K223

Vespa 50 LX 2T (2005-2012) 50cc/2stroke The Vespa 50 LX 2T
is also available as a 210 Light ignition kit.
210K223

Vespa 50 LXV 2T (2006-2012) 50cc/2stroke The Vespa 50 LXV 2T
is also available as a 210 Light ignition kit.
210K223

Vespa 50 S 2T (2007-2012) 50cc/2stroke The Vespa 50 S 2T
is also available as a 210 Light ignition kit.
210K223

Zip 50 2T (1992-2012) 50cc/2stroke The Zip 50 2T
is also available as a 210 Light ignition kit.
210K223

Zip 50 2T RST (1996-1999) 50cc/2stroke The Zip 50 2T RST
is also available as a 210 Light ignition kit.
210K223

PuchStorm 50 (1993-1994) 50cc/2stroke The Storm 50
is also available as a 210 Light ignition kit.
210K223

Typhoon 50 (1993-1999) 50cc/2stroke The Typhoon 50
is also available as a 210 Light ignition kit.
210K223
